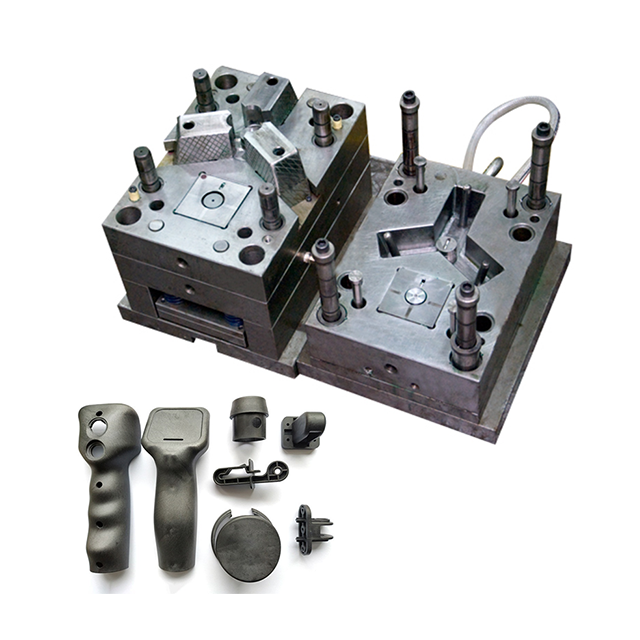

Sourcing tooling for medical devices is not a standard procurement exercise. The stakes are incredibly high in this heavily regulated industry. A single failure can lead to regulatory rejection, massive product recalls, or compromised patient safety. The core challenge lies in bridging a critical gap. You must transition from initial part design and Design for Manufacturability (DFM) into a validated, scalable, and compliant manufacturing process. Finding the right partner and the right tooling parameters is crucial for long-term success.
This article provides procurement engineers and product managers with a hard-science, risk-mitigating framework. We will explore how to evaluate tooling requirements objectively. You will learn how to vet potential manufacturing partners against strict compliance standards. We will equip you with actionable strategies to ensure your project succeeds. By understanding these technical variables, you can confidently navigate the complex landscape of medical device manufacturing.
Tooling dictates compliance: Mold class and steel hardness must align directly with the device’s expected lifecycle and FDA/CE regulatory tiers.
Material drives mold design: Selecting a specific medical plastic (e.g., PEEK, Ultem) dictates the mold's thermal management, gating, and shrinkage tolerances.
Validation over promises: A qualified supplier must prove their capability through rigorous IQ/OQ/PQ validation frameworks, not just marketing claims.
You must define exact production run requirements before discussing tooling specifics. Establish clear success criteria early in the project lifecycle. Determine the expected market demand and the physical lifecycle of your device. Production volume dictates the fundamental architecture of your tool. You cannot engineer a highly reliable manufacturing process without locking in these baseline metrics first.
Consider the Society of Plastics Industry (SPI) mold classifications carefully. They guide your investment level and establish baseline durability.
Class 101 (1 Million+ cycles): These tools handle extremely high volumes. They are absolutely necessary for high-volume consumables like syringes and diagnostic cassettes. Manufacturers build them using hardened tool steel, typically H13 or 420 stainless steel, to prevent premature wear.
Class 103 (Under 500k cycles): These molds operate reliably for medium production runs. They are highly viable for mid-volume, specialized surgical tools. They require less initial capital but still maintain robust structural integrity.
Scalability planning is equally vital for risk mitigation. Assess whether you need a single-cavity prototype mold first. Can you move directly to a multi-cavity or family mold? This decision depends heavily on whether you have locked-in designs. Make these decisions based on empirical data, not optimistic guesses. Rushing into a 16-cavity tool before finalizing your CAD files guarantees expensive rework. Start small if the design remains fluid. Scale up only when validation proves the geometry is stable.
Medical devices often require extreme precision to function correctly. Tolerances of ±0.001 inches or tighter are standard in this sector. You need robust, highly engineered tooling to achieve this micro-molding precision consistently. A standard commercial tool will fail to hold these dimensions over thousands of cycles.
You must audit core tooling specifications rigorously. Steel selection serves as the absolute baseline for durability. Engineers often specify 420 stainless steel for medical cleanrooms. It offers exceptional corrosion resistance against environmental humidity. It also withstands the harsh sterilization chemicals used during routine cleanroom maintenance. Using lower-grade steel invites rust, which immediately contaminates the sterile environment.
Cavitation strategy requires a careful balance. You naturally want higher output to meet market demand. However, multi-cavity variations introduce significant processing risks. Each additional cavity complicates resin flow, pressure distribution, and thermal management. If one cavity fills faster than another, part dimensions will drift.
Cooling channel design drastically impacts mold performance. Conformal cooling channels represent a major upgrade over traditional straight-line baffling. They follow the complex geometry of the part closely. This technology optimizes cycle times while minimizing warpage in highly precise components.
Defining comprehensive medical plastic injection mold specifications ensures processing consistency. It protects your project from subtle dimensional variations. Ensure your engineering team documents every single requirement clearly before releasing the purchase order.
You cannot separate mold design from polymer science. A profound resin-mold symbiosis exists in manufacturing. Material selection fundamentally dictates how you must build the tool. Different polymers behave radically differently under high heat and pressure.
Evaluating medical-grade resins reveals distinct tooling requirements. High-heat resins like PEEK and PEI/Ultem present unique challenges. They require specialized high-temperature molds. You must incorporate advanced thermal control systems to keep the tool exceptionally hot during injection. Conversely, commodity resins like polycarbonate and polypropylene are much easier to process. Yet, gating and venting remain critical. You must size gates correctly to prevent shear stress and eliminate gas traps that cause burn marks.
When you select a specific medical plastic, consider its post-molding journey. Biocompatibility and sterilization are non-negotiable factors. The mold must account for material shrinkage accurately. Structural changes will occur during Gamma, EtO, or Autoclave sterilization. For instance, Autoclave cycles expose parts to severe heat and moisture. Your tooling must anticipate these dimensional shifts perfectly to ensure components assemble correctly after sterilization.
ISO 13485 certification is merely a prerequisite for medical manufacturing. It is not a competitive differentiator. You must dig deeper into how the facility enforces these standards daily. A certificate on the wall means nothing if operators bypass standard operating procedures on the floor.
The IQ/OQ/PQ validation protocol proves absolute processing capability. It replaces empty marketing promises with objective scientific proof.
Installation Qualification (IQ): Evaluates whether the equipment is installed correctly. It verifies utility connections, software versions, and safety features.
Operational Qualification (OQ): Establishes the upper and lower control limits. Engineers push the process to its extremes. This establishes a safe, robust processing window.
Performance Qualification (PQ): Proves the process can run repeatedly at scale. It must show zero degradation over time under normal operating conditions.
Environmental controls also demand strict scrutiny. Clarify when an ISO Class 7 or 8 cleanroom is strictly necessary. Implantables and fluid-path devices require strict cleanrooms to prevent particulate contamination. External casings might only need controlled white-room environments. Over-specifying cleanroom requirements wastes resources. Under-specifying invites immediate regulatory rejection.
Table: Cleanroom Application Guidelines
Cleanroom Class | Typical Medical Device Applications | Contamination Control Level |
|---|---|---|
ISO Class 7 | Implantables, Fluid-path devices, IV components | Strict (Max 352,000 particles ≥ 0.5 µm/m³) |
ISO Class 8 | Surgical instruments, diagnostic cassettes | Moderate (Max 3,520,000 particles ≥ 0.5 µm/m³) |
Controlled White-Room | External monitor casings, non-invasive tools | Basic environmental monitoring |
A robust due diligence framework is essential. You must conduct thorough physical or virtual facility audits. Do not rely solely on polished sales presentations. Inspect the tool room. Review their equipment maintenance logs. Speak directly with their quality engineers.
Evaluate their engineering and DFM competence critically. A competent medical plastic injection mold supplier provides robust Moldflow analysis upfront. They should push back aggressively on bad design elements. For example, they must highlight non-uniform wall thicknesses that cause sink marks. When sourcing a medical plastic injection mold,high precision plastic injection mold for intricate components, this technical feedback is invaluable. If a vendor simply accepts a flawed CAD model without question, they are a severe liability.
Traceability and documentation protect your compliance status. Evaluate their Material Review Board (MRB) processes closely. Check their lot traceability through detailed Device History Records (DHR). If a defective part reaches the market, you must trace it back to the exact resin batch and machine operator instantly.
Watch out for glaring red flags during your audit. Unwillingness to share maintenance schedules is completely unacceptable. Outsourced tooling without transparency introduces massive risk. Vague answers regarding intellectual property (IP) protection should terminate discussions immediately. You need a partner, not just a vendor.
Deconstruct your tooling quotes carefully. Do not just look at the bottom line. Differentiate between the raw cost of the steel, the precision machining hours, and the validation trials. Ensure the quote includes specific line items for T1 and T2 sample runs.
Implementation risks can derail your product launch entirely. Timeline slippage is a primary threat in custom tooling. Mold iterations can easily take months instead of weeks if communication fails. Flash and burrs pose another massive risk. Mating surfaces degrade over time if the tool uses inferior steel. This leads to hidden costs from manual post-processing. Worse, plastic flakes from burrs compromise device safety.
Take actionable next steps to secure your project. Request a comprehensive DFM review from short-listed vendors. Demand a highly detailed tooling proposal defining cooling channels and ejection mechanisms. Compare these technical proposals against your initial success criteria.
Chart: Risk Mitigation Strategy
Identified Risk | Potential Impact | Actionable Mitigation Strategy |
|---|---|---|
Timeline Slippage | Delayed market launch, missed revenue | Mandate weekly progress reports; penalize late T1 samples. |
Flash and Burrs | Patient injury, excessive manual trimming | Specify 420 SS and strict mating surface tolerances. |
Dimensional Drift | Assembly failure, regulatory rejection | Implement rigorous OQ/PQ validation before mass production. |
Resin Degradation | Loss of structural integrity during sterilization | Conduct Moldflow analysis to optimize gate sizes and heat control. |
Selecting the right tooling requires careful analysis. You must balance upfront capital with long-term reliability. Regulatory compliance remains the ultimate priority in this sector. Never compromise on structural integrity or scientific validation protocols. A poorly built tool will haunt your production line for years.
Use a strict decision matrix for your final choice. Prioritize supplier transparency above all else. Demand scientific molding capabilities, specifically thorough IQ/OQ/PQ execution. Ensure precise specification matching for your chosen medical-grade resins. A reliable medical plastic injection mold is the foundation of a successful device launch.
Submit your CAD files for a thorough feasibility analysis today. Evaluate the feedback closely. Alternatively, download a proprietary supplier-vetting checklist to audit your current vendors. Protect your medical device launch with objective, data-driven tooling decisions.
A: Costs range significantly based on SPI class, cavitation, and complexity. A typical mold ranges from $10,000 to over $100,000. Hardened steel and advanced cooling channels increase upfront prices. Rigorous validation procedures also add to the initial investment. However, these investments prevent catastrophic downstream failures and ensure regulatory compliance.
A: Medical molds operate under far stricter requirements. They typically use higher-grade stainless steel, like 420 SS. This prevents rust in humid cleanroom environments. They demand significantly tighter micro-molding tolerances. Furthermore, medical tooling requires rigorous validation documentation, including IQ, OQ, and PQ reports, mandated by the FDA and CE.
A: No, cleanroom requirements depend on the device's application. Implantables and fluid-contact devices typically require ISO Class 7 or 8 cleanrooms. External casings or non-invasive surgical tools often do not. They may only require a controlled white-room environment, provided the selected material is a certified medical grade, such as USP Class VI.
A: Fabricating the actual tooling usually takes 6 to 12 weeks. However, the process does not end there. You must account for an additional 4 to 8 weeks. This secondary phase involves rigorous sampling, iterative adjustments, and comprehensive process validation to meet strict medical standards.
