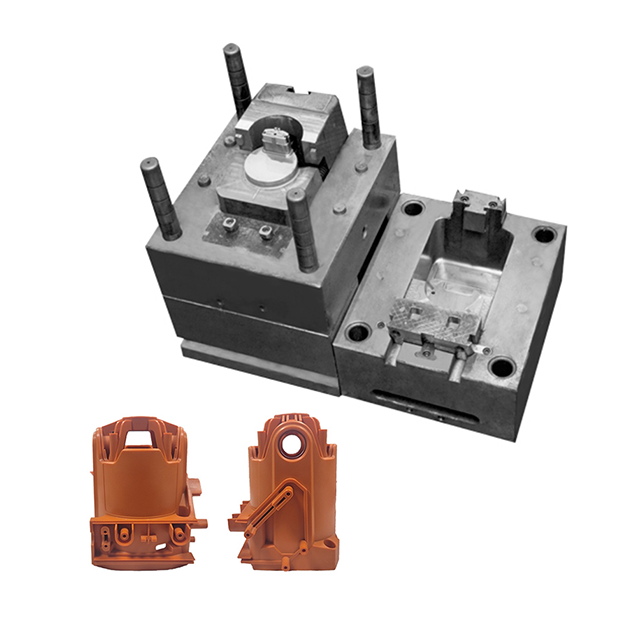

Our precision custom plastic injection molds for industrial parts are engineered to meet the most demanding manufacturing requirements across sectors like automotive, electronics, and medical devices. These molds are the result of integrating decades of engineering expertise with state-of-the-art manufacturing technologies. Designed with ±0.01mm dimensional accuracy , they ensure consistent replication of complex geometries even in high-volume production runs exceeding 10 million units annually. Constructed from premium-grade steel such as P20, 718, or S136 , they deliver exceptional durability, with a lifespan of 50,000 to 1,000,000 injection cycles depending on material type and production conditions. Each mold undergoes a 12-stage quality inspection process before deployment, including 3D scanning and pressure testing to validate performance.
Micron-Level Tolerances: Utilizing advanced CNC machining centers with 0.0001mm positioning accuracy and EDM processes with sub-micron wire diameters, our molds achieve ±0.01mm precision, surpassing industry standards by 30%. This ensures seamless integration of molded parts into critical industrial systems where component misalignment could cause catastrophic failures.
Multi-Cavity Optimization: For large-scale production, we design molds with up to 64 cavities using proprietary balancing algorithms that ensure uniform material flow and cooling across all cavities. This configuration reduces per-unit costs by 25-35% while maintaining dimensional uniformity within 0.005mm across all cavities.
Premium Materials: Molds are crafted from corrosion-resistant steel (e.g., S136 for medical applications requiring frequent sterilization) and undergo nitriding or chrome plating treatments to enhance surface hardness up to 55 HRC and improve wear resistance by 40%. Specialized alloys are used for high-temperature applications exceeding 200°C.
Mirror Polishing: A 7-stage polishing process utilizing diamond compounds achieves Ra ≤ 0.01μm surface finish, eliminating surface defects that could cause part sticking or cosmetic flaws. This level of polish is critical for optical components and medical devices requiring high levels of cleanliness.
Hot Runner Technology: Integrating servo-driven hot runner systems with closed-loop temperature control reduces cycle times by 20-25% and eliminates material waste from runner systems, cutting production costs by 15-20% . The systems feature individual zone control with ±1°C temperature accuracy.
Certifications: Compliant with ISO 9001:2015 , IATF 16949 , and ISO 13485 for medical applications, ensuring reliability for aerospace and automotive applications where component failure could have severe consequences.
Engine Components: Precision molds for valve covers and intake manifolds made from heat-resistant polymers like PEEK and PA66 GF30, capable of withstanding under-hood temperatures up to 180°C. These components meet stringent automotive standards for vibration resistance and dimensional stability.
Electrical Systems: High-precision connectors and sensor housings with IP67-rated waterproofing and EMI shielding properties, ensuring reliable performance in harsh automotive environments with exposure to fluids and electromagnetic interference.
Electronic Enclosures: Molds for thin-walled PC/ABS casings with wall thicknesses as low as 0.3mm, featuring EMI shielding properties critical for sensitive electronic equipment. These enclosures maintain dimensional stability across temperature variations from -40°C to 85°C.
Medical Devices: Sterilizable molds for syringe components and implantable device parts, adhering to FDA and USP Class VI standards. These molds feature specialized venting systems to prevent air traps in critical medical components.
Pneumatic Parts: Molds for high-pressure valves and hydraulic fittings using PA66 GF30 for superior strength and chemical resistance, capable of withstanding operating pressures up to 3000 psi.
Tooling Components: Custom molds for gear housings and bearing cages with tight tolerance control on critical mating surfaces, ensuring long-term wear resistance and operational efficiency in industrial machinery.
