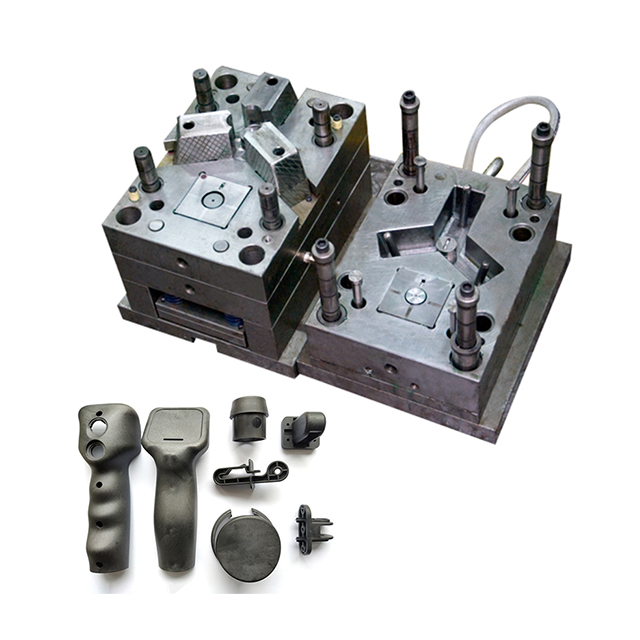

Designed for industrial-grade applications, our high precision plastic injection molds combine cutting-edge engineering with robust materials to deliver repeatable, defect-free parts at production volumes ranging from prototype runs to millions of units annually. These molds are optimized for multi-material processing, including engineering plastics like PA66 GF30 , PEEK , and LCP, and feature advanced conformal cooling systems to reduce cycle times by 30% compared to conventional cooling designs. Each mold design undergoes finite element analysis (FEA) to validate structural integrity under maximum clamping forces.
Mold Flow Analysis: Pre-production simulations using Moldflow software with 3D solver technology optimize material flow, minimizing warping and ensuring uniform part quality across production runs. This analysis predicts and prevents potential defects such as sink marks, weld lines, and air traps.
Tie-Bar-Less Design: Inspired by Engel e-victory machines , our molds offer 30% larger mold areas and improved clamping force distribution for intricate parts with complex geometries. This design eliminates interference issues, allowing for larger or more complex part geometries.
High-Temperature Resistance: Molds withstand temperatures up to 300°C with specialized heating elements and thermal insulation, ideal for processing high-performance materials like LCP and PEEK used in aerospace and automotive under-hood components.
Corrosion Resistance: Protective coatings like electroless nickel plating and TD treatment (Titanium Diffusion) create surface hardness exceeding 2000 HV, protecting molds from chemical exposure in industrial environments processing corrosive materials like PVC or fluoropolymers.
Modular Design: Replaceable core and cavity inserts allow quick adaptation to product design changes without retooling the entire mold, reducing downtime by 50% and lowering tooling costs for product iterations.
Energy Efficiency: Integration with EcoDrive hydraulic systems reduces energy consumption by 40% compared to traditional molds, while smart sensor technology monitors and optimizes energy usage in real-time.
Pumps & Valves: Molds for chemical-resistant diaphragms and sealing components using PVDF and PTFE materials, capable of withstanding aggressive chemicals and operating temperatures up to 150°C. These components maintain tight tolerances to prevent leakage in fluid handling systems.
Heavy Machinery: Wear-resistant gears and bushings made from PA66 GF30 with UL 94 V-0 flame retardancy and self-lubricating properties, reducing maintenance requirements in heavy machinery applications.
Appliance Parts: Thin-walled housings for kitchen appliances, produced with multi-cavity molds (up to 32 cavities) to achieve ±0.02mm tolerance and consistent cosmetic quality. These parts feature heat-resistant properties for use near heating elements.
Power Tools: Lightweight yet durable motor casings using PC/ABS alloys with impact resistance exceeding 15kJ/m², designed to withstand drop testing from heights up to 2 meters without cracking.
Aircraft Interiors: Molds for structural brackets and cabin components compliant with FAR 25.853 flammability standards and smoke toxicity requirements. These components meet strict weight reduction targets for fuel efficiency.
Military Equipment: Hermetically sealed connectors with IP68-rated waterproofing and EMI/RFI shielding, ensuring reliable operation in extreme environmental conditions including salt spray, vibration, and temperature extremes.
