A plastic part may look simple, yet its mold rarely is. Every surface, hole, rib, and tolerance affects the tool behind it. A custom plastic injection mold turns an approved design into repeatable production. In this article, you will learn how engineers design, machine, test, and approve these molds.
● A custom plastic injection mold begins with the part’s function, resin, tolerances, appearance, production volume, and expected service life.
● Design for manufacturability identifies risky walls, ribs, bosses, undercuts, gates, parting lines, and ejection areas before steel is cut.
● Mold-flow analysis helps engineers study filling, pressure, cooling, weld lines, air traps, shrinkage, and possible warpage.
● CNC machining forms most mold geometry. EDM and wire cutting create deep, narrow, sharp, or difficult features.
● Toolmakers fit the core, cavity, inserts, sliders, lifters, cooling circuits, and ejection system into one working assembly.
● Polishing and texturing directly affect the molded surface. Clear or high-gloss parts require especially controlled finishing.
● T0 samples reveal whether the tool fills, cools, opens, ejects, and produces acceptable parts.
● Final approval should cover dimensions, appearance, material, assembly, function, process stability, and tooling records.
A successful mold project starts long before machining. Engineers first define what the finished plastic component must do. They review its operating temperature, loads, chemical exposure, appearance, assembly method, and expected production quantity.
These requirements guide every later tooling decision. A protective machine cover has different needs than a transparent inspection window. A structural bracket made from reinforced nylon also requires different tooling from a simple polypropylene housing.
The project team should provide a complete three-dimensional model and a dimensioned drawing. They should identify critical tolerances, approved resin grades, surface finishes, colors, and annual order volumes.
Expected tool life also matters. A mold for limited production may use a simpler construction. A mold expected to produce large quantities usually needs durable steel, stronger support, efficient cooling, and easily serviced components.
DFM examines whether the part can be filled, cooled, released, and produced consistently. Engineers review wall thickness, draft, ribs, bosses, radii, holes, and undercuts.
Uneven walls may cool at different rates. This can increase sink marks, internal stress, or warpage. Limited draft may make ejection difficult. Deep undercuts may require sliders, lifters, or removable inserts.
The DFM report should also show the proposed parting line, gate position, gate type, and ejector-pin locations.
A physical prototype can confirm size, fit, assembly, and basic function. It is especially useful for handles, covers, housings, clips, and mating components.
However, a prototype does not prove the design will mold correctly. Mold-flow analysis serves a different purpose. It predicts how the selected resin may travel, pack, cool, and shrink inside the planned tool.
Note：Approve the resin grade before final mold design because shrinkage and processing behavior influence cavity dimensions.
Once the part and DFM plan are approved, engineers convert the product design into a complete tooling system. This is the most important stage because mold architecture affects quality, output, maintenance, and unit cost.

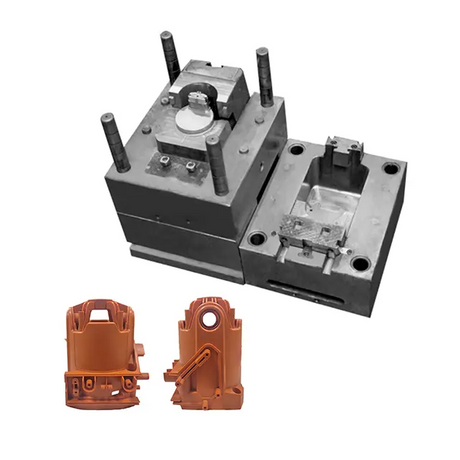

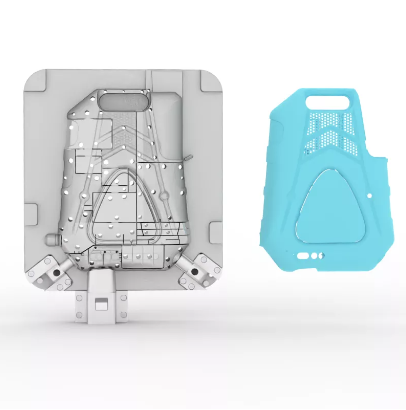

The mold designer separates the part into core and cavity geometry. These two sections form the internal and external surfaces of the molded component.
The designer then adds the parting line, runners, gates, vents, ejector pins, guide components, cooling channels, and support plates. Parts containing side holes, clips, or undercuts may also need sliders or lifters.
Mold-flow results can support gate placement and cooling decisions. They may reveal filling imbalances, trapped air, visible weld lines, high pressure, or likely distortion.
Steel selection depends on the resin, production volume, finish, maintenance plan, and expected tool life. General industrial parts may use pre-hardened tooling steel. High-wear or appearance-critical projects may require harder, more polishable, or corrosion-resistant materials.
Glass-filled polymers can wear gates and cavity surfaces faster. Clear parts need steel capable of holding a fine polish. Corrosive or flame-retardant materials may require added surface protection.

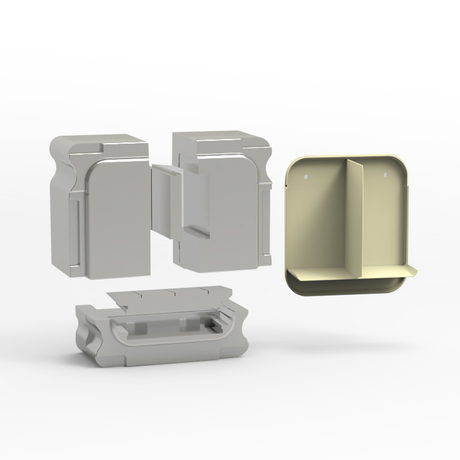

Replaceable inserts are useful around high-wear features. They can simplify repairs without replacing an entire core or cavity.
The toolmaker prepares the mold base, core blocks, cavity blocks, and inserts. CNC milling removes most unwanted steel and forms the main three-dimensional surfaces.
Drilling creates cooling passages, screw holes, and component locations. Lathes may produce round cores, sleeves, or other rotational parts. Grinding establishes flat, accurate reference surfaces.
Rough machining normally leaves a small finishing allowance. Later operations bring critical areas to their final size and finish.
A rotating CNC cutter cannot create every shape. Sharp internal corners, deep ribs, narrow slots, fine lettering, and restricted areas often require electrical discharge machining.
EDM removes metal through controlled electrical sparks. A shaped electrode reproduces the required detail inside the steel. Wire cutting uses a thin energized wire to form accurate profiles and openings.
These processes support complex industrial components, including precision housings, connectors, covers, and parts containing narrow functional details.
After machining, skilled toolmakers begin fitting and assembly. They check how the core and cavity meet along their shutoff surfaces.
They install inserts, guide pins, bushings, ejector pins, return pins, springs, sliders, and lifters. Each moving component must travel smoothly and return to its correct position.
They also test cooling passages for leakage or blockage. Poor alignment may cause flash, uneven walls, damaged parts, or rapid tool wear.
The required plastic surface determines the mold finish. A functional internal part may only need a standard machined surface. A visible housing may need a controlled texture. A transparent or high-gloss component requires careful polishing.
Surface defects in the cavity usually transfer onto every molded part. Polishing must therefore remove machining marks without changing important dimensions or edge shapes.
The completed tool is cleaned, lubricated, assembled, and checked manually. The team confirms opening, closing, ejection, slider movement, alignment, and cooling connections.
The assembled mold is installed in an injection molding machine. The team uses the approved resin to produce the first T0 samples.
These samples show whether the mold fills and ejects correctly. Inspectors check critical dimensions, appearance, flash, sink marks, short shots, weld lines, flow marks, and warpage.
The team also reviews gate removal and assembly fit. Tool corrections may follow. Some issues need steel adjustments, while others require improved molding settings.
Stage | Main purpose | Typical output |
Product review | Confirm functional and production needs | Approved specifications |
DFM and simulation | Reduce design and filling risks | DFM and mold-flow findings |
Mold design | Define the complete tool structure | Approved mold drawing |
Machining | Create cores, cavities, and inserts | Finished mold components |
Fitting and finishing | Build a working mold assembly | Trial-ready tool |
T0 trial | Evaluate tool and part performance | Samples and inspection data |
Correction and approval | Establish stable production | Approved mold and process |
Tip：Request a mold-design review before machining begins because digital changes cost less than steel corrections.
There is no universal mold design for every plastic component. The geometry and selected polymer change the cavity size, gate system, cooling layout, venting, finish, and tool material.
ABS is often chosen for strong housings, handles, and covers. Polypropylene offers chemical resistance and is useful for many functional components. Polycarbonate supports transparent or impact-resistant parts.
Engineering materials such as reinforced nylon, PPS, or PEEK may serve demanding industrial environments. However, they often need higher processing temperatures or greater wear resistance.
Each resin has its own shrinkage and flow behavior. Engineers must account for these properties while sizing the cavity and planning the molding process.
A straight-pull mold opens in one direction. It is usually simpler, faster, and easier to maintain.

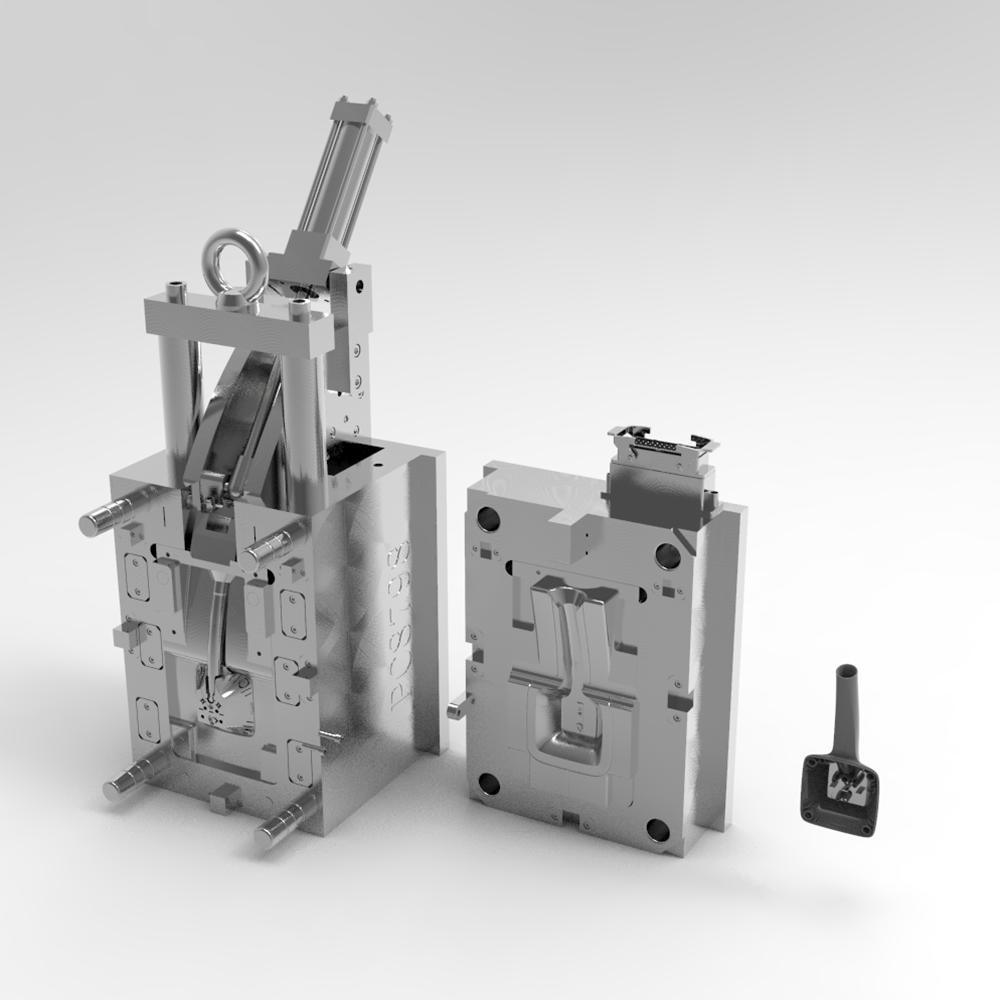

Side holes, locking tabs, threads, and internal undercuts may prevent straight ejection. Sliders move sideways before the part releases. Lifters move at an angle during ejection. Some projects use removable or collapsible cores.
These features increase tooling cost and maintenance needs. Early design changes can sometimes remove an action without reducing part performance.
Clear components reveal flow lines, trapped gas, scratches, and polishing defects. Their molds need clean surfaces, effective venting, controlled gates, and stable temperature management.
Textured surfaces create different concerns. Draft must support clean release from the texture. Gate and ejector locations should avoid visible areas whenever possible.
Quality cannot be inspected into a mold at the end. It must be controlled throughout design, machining, assembly, and testing.
Toolmakers measure cavity dimensions, insert positions, shutoff surfaces, holes, and alignment features between operations. This prevents one early error from affecting later work.
Inspection methods may include precision gauges, height measuring equipment, optical systems, or coordinate measuring machines. The chosen method depends on geometry and tolerance.
Simulation provides useful predictions, but actual molding confirms performance. Engineers compare T0 results against the planned filling pattern, cooling behavior, and expected shrinkage.
Balanced filling helps multiple cavities produce similar parts. Effective cooling supports shorter, more stable cycles. Poor cooling may create uneven shrinkage or distortion.
A complete approval package may include dimensional reports, material records, sample photos, process settings, and tool-verification documents.
The approved sample becomes an important reference. Future production should match its defined dimensions, appearance, assembly, and functional results.
The first trial rarely marks the end of development. It begins a controlled process of measurement, diagnosis, correction, and approval.
Technicians set material-drying conditions, barrel temperatures, mold temperature, injection speed, packing pressure, cooling time, and clamping force.
They should not hide a tooling problem through extreme process settings. A reliable mold should operate inside a practical processing window, not at one fragile setting.
Short shots may result from restricted flow, weak venting, a small gate, or unsuitable settings. Flash may point to damaged shutoffs, excessive pressure, or inadequate clamping.
Sink marks often relate to thick sections, poor packing, or uneven cooling. Warpage can result from unbalanced filling, cooling differences, part geometry, or resin behavior.
Each correction should follow evidence from samples, measurements, and process data.
After modifications, the mold produces another trial. The team repeats dimensional, visual, assembly, and functional checks.
Approval should define the accepted sample, resin, color, surface finish, process window, and critical dimensions. The mold can then move into pilot or mass production.
Note：Separate tooling defects from process defects before changing steel because unnecessary cutting may create permanent problems.
The lowest initial mold price does not always produce the lowest total manufacturing cost. Buyers should consider output, scrap, cycle time, maintenance, and future changes.
A single-cavity mold produces one part per cycle. It has a simpler feed system and often costs less to build.
A multi-cavity mold produces several parts per cycle. It can reduce unit cost during large production runs. However, every cavity should fill and cool at a similar rate.
Family molds produce different parts in one tool. They can save tooling cost, but balancing different shapes and volumes may be difficult.
A cold-runner system creates a solid runner during every cycle. The design is simpler, but it may create extra material for recycling or disposal.
A hot-runner system keeps material molten inside heated channels. It can reduce runner waste and support automated production. It also increases system cost, control requirements, and maintenance complexity.
The correct choice depends on resin, part size, appearance, volume, and production goals.
Cooling often controls a large share of the molding cycle. Well-planned channels remove heat evenly and improve dimensional stability.
Replaceable inserts can protect the buyer from costly future repairs. Hardened components or surface treatments may also improve wear and corrosion resistance.
These investments raise initial tooling cost but may deliver stronger long-term value.
A custom mold moves through design, simulation, machining, fitting, finishing, and repeated trials. Each decision affects quality, cycle time, cost, and service life. Dongguan Quanhao Plastic Mold Co., Ltd. supports mold design, prototyping, tooling, injection molding, inspection, finishing, and assembly. Its industrial solutions create precise housings, functional parts, protective covers, and clear components for reliable production.
A: A custom plastic injection mold shapes one approved part design repeatedly.
A: CNC forms main surfaces, while EDM creates difficult details.
A: It finds filling, cooling, ejection, and geometry risks early.
A: Steel, cavities, size, actions, finish, and validation affect cost.
A: Steel usually supports longer production and greater wear resistance.
A: Engineers adjust tooling, venting, cooling, gating, or process settings.
