Our high-gloss clear plastic molded parts redefine industrial aesthetics and functionality through cutting-edge manufacturing techniques. Crafted using advanced variotherm technology—a process that dynamically adjusts mold temperature during injection—these parts achieve a mirror-like finish (gloss level ≥85GU) without the need for post-processing steps like painting or coating. The clarity of these parts is exceptional, with 92% light transmittance that rivals optical-grade materials, making them ideal for applications requiring visual inspection, light transmission, or decorative appeal. Constructed from premium-grade polymers such as polycarbonate (PC) and acrylic, these parts are engineered to withstand extreme industrial conditions, including continuous operating temperatures up to 120°C, exposure to harsh chemicals like solvents and lubricants, and mechanical stress from vibration and impact.
The variotherm process ensures a seamless, traceless surface by heating the mold to 150–180°C during the injection phase, which eliminates common defects like weld lines, sink marks, and flow lines. This precision results in parts with Ra ≤0.2μm surface roughness—a level of smoothness comparable to polished stainless steel.
Vapor polishing is integrated into the production workflow to further enhance clarity, reducing micro-imperfections at the molecular level. This treatment creates a scratch-resistant finish with a pencil hardness rating of ≥2H, making the parts suitable for high-touch environments where frequent contact occurs.

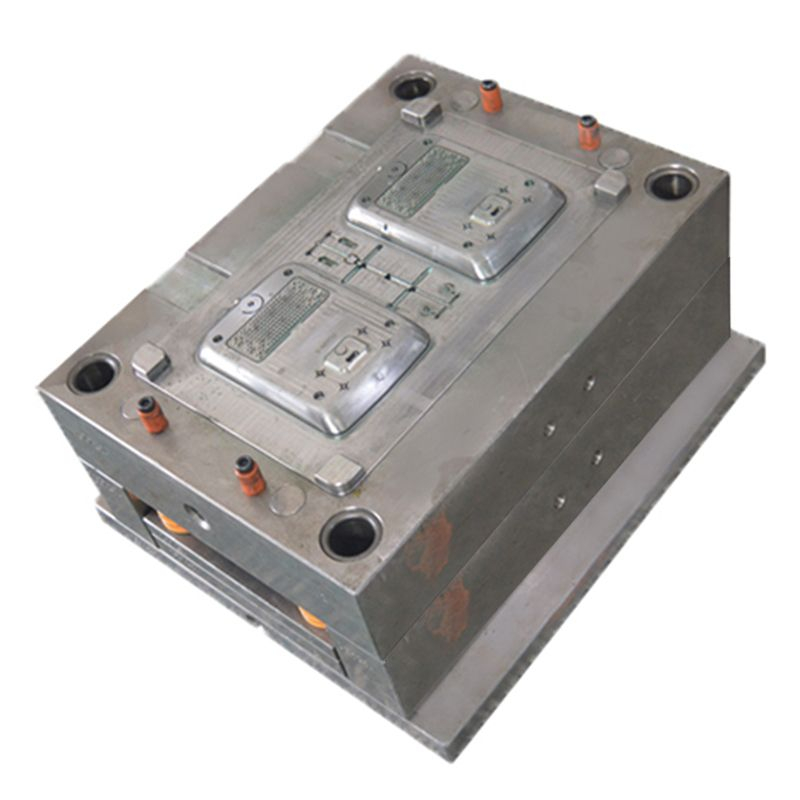

Tolerances as tight as ±0.01mm are consistently maintained through the use of CNC-machined molds with hardened steel cores (HRC 50–55) and real-time pressure monitoring systems that adjust injection parameters within milliseconds. This precision is critical for components like control panels and instrument housings, where dimensional accuracy directly impacts assembly fit and operational performance.
Inline 3D optical scanning systems inspect 100% of production runs, capturing 500,000 data points per part to ensure compliance with design specifications.
Selected polymers undergo rigorous testing to deliver UL 94 V-0 flame resistance and 5,000+ hours of UV stability (per ASTM G154), ensuring longevity in outdoor or high-risk settings. For example, PC variants resist hydrolysis in humid environments (up to 95% relative humidity) without losing structural integrity, while acrylic parts maintain clarity after 10,000+ cycles of thermal stress (from -40°C to 80°C).
Custom additive packages can be integrated to enhance specific properties, such as anti-fog coatings for refrigeration applications or anti-static formulations for electronics manufacturing.
Automotive: Dashboard clusters with integrated displays, headlight lenses with UV protection, and interior trim panels that maintain gloss even after years of exposure to sunlight and cleaning agents.
Electronics: Transparent covers for industrial sensors, display modules in control systems, and connectors that require both clarity and resistance to chemical cleaning agents like isopropyl alcohol.
Consumer Goods: Appliance fronts (e.g., washing machine control panels), cosmetic packaging with high-end visual appeal, and furniture accents that combine aesthetic appeal with impact resistance (Izod impact strength ≥12kJ/m²).
Industrial Equipment: Control knobs with clear indicators, valve covers for visual flow monitoring, and inspection windows in manufacturing machinery, where the high-gloss surface simplifies cleaning and improves visual monitoring of internal processes.
