Multi-material molding solves complex design challenges. However, selecting the wrong process can lead to blown tooling budgets or unscalable piece prices. Engineers and procurement teams face a critical choice every day. You must balance upfront capital expenditure against long-term production costs. Simultaneously, your parts must meet strict cosmetic and structural tolerance requirements. Navigating these variables requires clear technical knowledge and a strategic approach.
This article provides a transparent look at the operational realities separating these manufacturing methods. We examine cost break-even points and strict design constraints. You will learn exactly when to rely on traditional sequential methods versus investing in a true automated process. Making the right decision early ensures optimal production scaling. It protects your project timeline and secures your bottom line against unexpected revision costs.
Volume is the primary financial driver: Overmolding makes sense for low-to-medium volumes due to lower tooling costs; two-shot requires high volumes to amortize expensive, complex molds.
Precision dictates the process: Two-shot molding occurs in a single closed machine, offering vastly superior alignment and tighter tolerances than overmolding's transfer process.
Labor vs. Automation: Overmolding incurs a cycle-time and labor penalty (part transfer), whereas two-shot is fully automated.
Material matters: Both processes require careful analysis of chemical bonding capabilities (e.g., rigid substrates paired with elastomeric resins).
We must define the operational reality separating these processes. It helps to frame the comparison carefully. Do not think of this as one method being inherently better than the other. Instead, view it as automated single-cycle production versus manual or robotic multi-cycle production. Each approach serves a distinct manufacturing ecosystem.
Let us examine two shot injection molding first. This represents a continuous, highly automated process. A specialized machine utilizes a rotating platen or index plate. The press injects the first material to form the substrate. The mold opens slightly, the platen rotates, and the mold closes again. The machine immediately injects the second material into the newly formed cavity. Handling between shots is completely eliminated. The part never leaves the machine environment until it is fully finished.
Overmolding operates differently. We often call this insert molding or transfer molding. You inject the rigid substrate in a standard machine. The part cools completely. An operator or a robotic arm physically removes the substrate. They move it to a secondary mold or an entirely different machine. Finally, the press executes the overstrike. This sequential handling introduces several distinct variables into your production environment.
Risk assessment reveals contrasting vulnerabilities. Human or robotic transfer during overmolding introduces thermal variation. You also face positioning risks. Even a fractional misalignment in the secondary cavity causes flashing or uneven wall thickness. Contamination from dust or skin oils can compromise adhesion. Two-shot avoids these handling risks entirely. However, it introduces another severe danger. If your initial part design has structural flaws, modifying the integrated tool is exceptionally difficult. Engineering revisions on complex rotating tools carry massive financial penalties.
Understanding cost structures determines your manufacturing path. We must divide this into Capital Expenditure (CAPEX) and Operational Expenditure (OPEX). Your tooling budget and your production run size will usually dictate the final decision.
Building a double shot mold requires advanced engineering. Toolmakers must incorporate rotating mechanisms, internal shut-offs, and incredibly robust core materials. This complexity drives up the price. A single integrated tool often costs 50% to 100% more than building two separate conventional tools. Your upfront investment is substantial. You must secure leadership buy-in based on long-term savings projections.
Per-part cost operates inversely. Overmolding demands higher labor costs to facilitate the transfer process. It carries longer combined cycle times because you heat and cool the part twice. You also face a consistently higher scrap rate. Physical handling, secondary setup errors, and contamination all contribute to rejected parts. These OPEX penalties eat into your margins on every single unit produced.
You must calculate the volume break-even point. Determine exactly when the operational savings eclipse the heavy tooling investment. If labor and cycle-time efficiencies save you $0.30 per part, and the complex tool costs an extra $30,000, your break-even is 100,000 units. Typically, this threshold lands anywhere between tens to hundreds of thousands of parts. Low-volume runs simply cannot amortize the heavy upfront tool cost.
Apply a skeptical lens to your product roadmap. Never choose the highly automated path for unvalidated products. Market testing frequently requires design tweaks. If your product dimensions change, modifying a rotating tool is exponentially harder than modifying a simple secondary cavity. Preserve your capital if the design remains fluid.
Cost and Process Comparison Matrix
Criteria | Overmolding (Transfer) | Two-Shot Production |
|---|---|---|
Upfront Tooling Cost | Lower (Two simple molds) | Higher (One complex rotating mold) |
Per-Part Labor Cost | High (Manual or robotic transfer) | Low (Fully automated process) |
Scrap Rate Risk | Moderate to High (Alignment errors) | Low (Part never leaves the core) |
Design Flexibility | High (Easier to modify cavities) | Low (Revisions are highly complex) |
Ideal Volume | Under 50,000 units annually | Over 100,000 units annually |
Tolerance control separates adequate manufacturing from precision engineering. For medical devices or automotive seals, you require ultra-tight flash control. A small burr of rubber can ruin an entire assembly. 2K injection molding is absolutely mandatory for these applications. The rigid substrate remains tightly constrained on the steel core during rotation. It cannot shrink or warp before the second shot arrives. The secondary shut-offs seal perfectly against the exact dimensions of the freshly molded substrate.
Address substrate deflection risks honestly. Let us examine the transfer reality. Your rigid substrate cools down completely outside the press. Then you place it into a new steel cavity. You inject highly pressurized, hot resin over it. This thermal shock causes significant stress. The injection pressure can easily cause warp, deflection, or outright crushing of delicate substrate features. You must design extremely robust wall thicknesses to survive secondary placement.
Process mechanics limit your geometric complexity. Automated rotation allows for blind shut-offs. You can execute intricate interlocking geometries effortlessly. These highly complex designs would be physically impossible to align correctly inside a manual transfer tool. If your part features overlapping lips or 360-degree encapsulation, transfer methods will likely fail.
Consider these critical geometry constraints when evaluating your CAD files:
Wall Thickness Ratios: The substrate must always be thicker and structurally stronger than the outer elastomeric layer to prevent deflection.
Shut-off Angles: Secondary tools require adequate draft angles to shut off cleanly against the plastic substrate without crushing it.
Encapsulation Limits: Fully enclosing a part is practically impossible in a transfer process without exposing core pins or support structures.
Shrinkage Calculation: Sequential processing forces you to calculate two entirely different shrink rates occurring at different times, complicating final part dimensions.
The science of adhesion dictates your final part quality. Regardless of the chosen process, success depends heavily on melt temperatures. The chemical compatibility of your two resins forms the foundation of a durable bond. If the materials reject each other chemically, no manufacturing process will save the part.

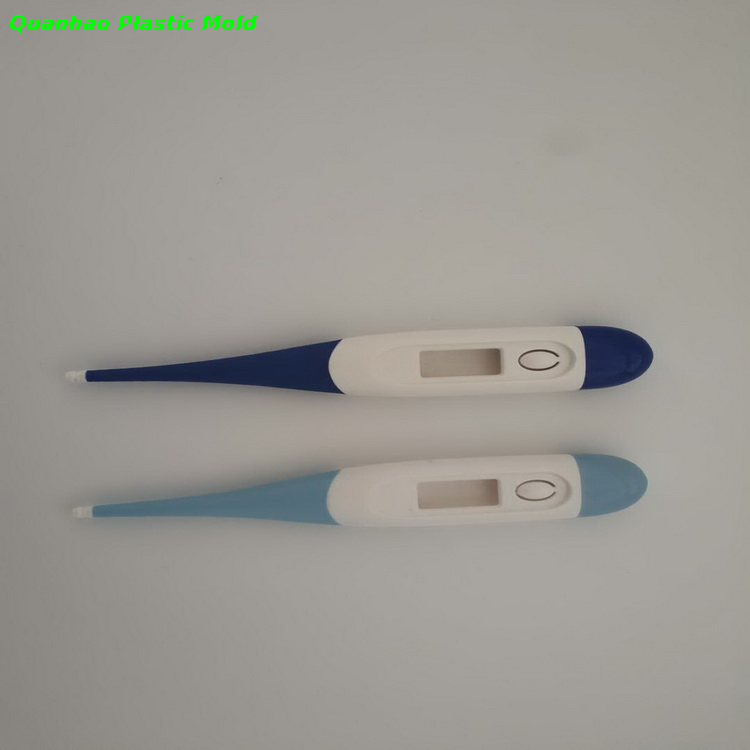

Let us discuss soft touch applications. Manufacturers frequently rely on TPU overmolding to improve user ergonomics. You inject this elastomeric material onto rigid substrates like ABS or Polycarbonate. This specific pairing creates durable, high-quality soft touch molded parts. Power tool grips, surgical equipment handles, and ruggedized electronics all rely on this exact material combination. The rigid core provides structural integrity, while the elastomer absorbs shock and improves grip.
The manufacturing process dramatically impacts chemical bonding strength. Automated rotation holds a massive scientific advantage. The press injects the second material while the first substrate remains hot. The polymer chains on the surface are still highly mobile. When the second resin hits this warm boundary, deep molecular entanglement occurs. This thermal advantage results in superior cross-linking and an exceptionally strong chemical bond.
Transfer processes face a harsher reality. The substrate is entirely cold. The polymer chains are frozen in place. The hot secondary resin struggles to melt the cold boundary layer deeply. You experience significantly lower chemical adhesion. Therefore, you must engineer mechanical interlocks into your CAD design. Incorporate undercuts, dovetails, or through-holes. These physical features guarantee the outer layer will not peel or delaminate during heavy use. You cannot rely strictly on chemical adhesion when substrates cool between stages.
We can simplify this complex engineering choice. Evaluate your project against the following operational criteria to find your optimal path.
Your production volume remains in the low-to-mid tier, typically under 50,000 parts per year.
Your budget for upfront tooling is strictly capped by management or external investors.
Your product design is still evolving, requiring flexibility for future cavity modifications.
Standard industry tolerances are acceptable for your final assembly.
You can easily incorporate mechanical interlocks into the substrate geometry.
Your production volume is exceptionally high, easily exceeding 100,000 parts per year.
High labor costs and extended cycle times will destroy your product's competitive profit margins.
The application demands zero-defect tolerance control and flawless cosmetic transitions.
Your part geometry is simply too delicate or complex for secondary physical placement.
Your end-use environment requires maximum chemical bond strength to prevent delamination.
The choice between sequential transfer and automated multi-material processes is rarely a purely technical decision. It remains a strategic financial and risk-management calculation. Your final verdict must balance production volume, precision requirements, and overall design maturity. Ignoring the financial realities of tool amortization will trap your project in an unprofitable cycle.
We advise procurement and engineering teams to pause before committing to a tooling path. Conduct a rigorous Design for Manufacturability (DFM) review with your injection molding partner. Scrutinize your material pairings, mechanical interlocks, and projected annual volumes. A thorough upfront review prevents expensive downstream failures and secures your supply chain efficiency.
Stop guessing about tooling expenses and cycle times. Engage an expert manufacturing partner early in your development cycle. Submit your 3D CAD files today for a comprehensive cycle-time analysis and tooling cost comparison.
A: They are synonymous industry terms. Both refer to the exact same continuous, single-machine process. "2K" originates from the German word "Zweikomponenten" (two-component). North American engineers typically prefer the term "two-shot." Both describe injecting two distinct polymers into one rotating mold without intermediate handling.
A: No. You need specialized dual-barrel machines. The press requires two independent injection units to melt and shoot the distinct resins simultaneously. The machine also requires an integrated rotating platen or internal index plate to move the mold core between the two injection stations.
A: Not necessarily. While a cold transfer process generates lower chemical adhesion, you can engineer mechanical interlocks into the part. Adding through-holes, undercuts, and edge wraps mechanically locks the second material in place. Proper material pairing and smart structural design ensure excellent durability.
A: The most reliable pairings combine rigid engineering plastics with flexible elastomers. Common successful pairings include Polycarbonate (PC) or PC/ABS blends paired with Thermoplastic Polyurethane (TPU) or Thermoplastic Elastomer (TPE). You must ensure their melting points are highly compatible to achieve a successful bond.
