In medical device manufacturing, integrating rigid substrates into soft-touch grips or seals is a standard requirement. You need these multi-material designs to ensure proper ergonomics, safety, and functionality. However, choosing the wrong manufacturing process creates significant problems. It leads to inflated unit economics, severe validation bottlenecks, and potential delamination failures during sterilization. To solve this, you must thoroughly evaluate your production options early in the design phase.
This article provides a transparent, engineering-focused comparison between 2K injection molding and traditional overmolding. We aim to help procurement and product development teams navigate these complex choices. You will learn how to select the most risk-averse, cost-effective path for your specific medical plastic molding needs. We explore process mechanics, material compatibility constraints, economic thresholds, and strict cleanroom realities.
Volume dictates the method: Overmolding is cost-effective for low-to-medium volumes; 2K injection molding dominates high-volume, long-term production due to lower cycle times.
Tooling investment: 2K requires complex, highly engineered molds with higher upfront CapEx, whereas overmolding utilizes two simpler molds but incurs higher labor and handling OpEx.
Contamination risk: 2K is a closed-loop, single-machine process, making it inherently safer for cleanroom environments compared to the transfer-heavy overmolding process.
Bond integrity: Both achieve excellent adhesion, but 2K offers superior, repeatable chemical bonding critical for devices subjected to harsh sterilization cycles.
Understanding the fundamental physics behind these two methods is crucial. The way materials enter the mold directly impacts the final device quality. Each process approaches the integration of two distinct polymers quite differently.
Manufacturers execute this advanced process inside a single machine during a single continuous cycle. First, the machine injects the primary rigid substrate. Next, the mold platen rotates, or a specialized core retracts inside the tool. The machine then immediately injects the secondary material over the primary part. We refer to this highly automated method as double shot molding.
The implementation reality reveals a major advantage. The primary substrate retains significant latent heat because it never leaves the tool. This elevated thermal state allows the secondary polymer chains to intermingle deeply. You achieve an optimal molecular bond. You completely avoid manual intervention, reducing human error to zero.
Traditional overmolding requires two completely distinct phases. You often perform these phases across two separate injection machines. The machine molds the primary substrate first. The part then cools down completely. Next, the machine ejects it. A robot or a human operator physically transfers the cooled part into a second, separate tool. Finally, the machine injects the secondary overmold material.
This implementation reality introduces specific challenges. The substrates cool significantly between the two phases. This temperature drop can slightly reduce the chemical adhesion strength between the polymers. Furthermore, physical transfer introduces minor alignment tolerances. If operators place the substrate slightly askew, you risk flashing or incomplete seals.
Process Feature | 2K Injection Molding | Traditional Overmolding |
|---|---|---|
Cycle Type | Single, continuous cycle | Two separate cycles |
Handling Required | Zero (fully automated) | Manual or robotic transfer |
Thermal State | Hot substrate (strong chemical bond) | Cold substrate (relies on surface prep) |
Alignment Risk | Virtually nonexistent | Moderate (depends on fixture design) |
Success in multi-material medical devices relies heavily on chemistry. You must match melt temperatures and surface energies carefully. If materials reject each other, the device will fail in the field.
Engineers typically rely on specific combinations to ensure durability and patient safety. The primary material provides the structural backbone. The secondary material provides grip, sealing, or damping properties.
Common rigid substrates: Medical-grade Polycarbonate (PC), Acrylonitrile Butadiene Styrene (ABS), Polyetheretherketone (PEEK), and various Copolyesters.
Common elastomers: Thermoplastic Elastomers (TPE), Thermoplastic Polyurethanes (TPU), and Medical Silicone.
Materials fuse together through two primary mechanisms. Understanding them helps you design more robust medical components.
Chemical bonding occurs natively when you pair compatible resins. A great example is matching PC substrates during TPU TPE overmolding operations. The 2K process generally yields a much stronger chemical bond. This happens because the continuous thermal state allows polymer chains to entangle before cooling.
Mechanical interlocking becomes necessary when materials remain chemically incompatible. You must design undercuts, holes, or physical channels into the primary substrate. The secondary liquid resin flows into these gaps and hardens. Both methods support mechanical interlocking. However, traditional overmolding often relies heavier on these mechanical designs to prevent delamination.
Medical devices face brutal environments. You must evaluate how your chosen material pair withstands standard hospital sterilization. Devices often endure Autoclave (high heat and steam), Gamma irradiation, or Ethylene Oxide (EtO) gas. Poorly bonded parts are highly susceptible to peeling post-sterilization. The thermal cycling forces the materials to expand and contract. If the chemical bond is weak, the elastomer will shear away from the rigid plastic.
Financial considerations often drive the final manufacturing decision. You must balance initial capital expenditures against long-term operational savings. Let us break down the unit economics.
The barrier to entry differs vastly between the two methods. 2K molding demands a 50% to 100% higher initial tooling cost. The molds require highly specialized rotary platens, complex hot runner systems, and intricate shut-off valves. This engineering complexity drives up the initial invoice.
Conversely, traditional overmolding offers a lower barrier to entry. You can use standard single-shot molds. This approach proves ideal for early-stage prototyping, clinical trial batches, or localized manufacturing runs. You spend less money upfront to validate your product in the market.
Operational expenses tell a different story once production begins. The automated nature of 2K molding eliminates secondary handling. It slashes cycle times drastically. You reduce labor costs to near zero for the transfer phase. As a result, the unit price drops significantly at scale. We see two-color injection molding consistently win on per-part pricing in mass production.
Traditional overmolding carries a higher per-part cost. You pay for dual cycle times. You pay for staging space. You pay for the transfer labor, whether human or robotic. Every extra minute increases the baseline cost of the medical component.
You should frame this decision mathematically. We recommend performing a break-even analysis before cutting steel. The break-even point occurs when the higher tooling cost of 2K equates to the higher labor cost of overmolding.
Cost Analysis Break-Even Chart (Estimates) | ||
Production Volume (Annual) | Recommended Process | Primary Cost Driver |
|---|---|---|
Under 25,000 units | Traditional Overmolding | Low tooling CapEx |
25,000 - 100,000 units | Hybrid / Project Dependent | Evaluate part complexity |
100,000 - 250,000+ units | 2K Injection Molding | Low per-part OpEx & Speed |
Typically, production runs exceeding 100,000 to 250,000 units per year easily justify the tooling ROI of the two-shot process.
Medical manufacturing demands absolute precision. Regulatory bodies forgive zero mistakes. Your chosen molding method directly impacts your ability to maintain strict cleanroom standards.
Traditional overmolding involves part ejection, staging, and re-insertion. Every single touchpoint introduces risk. Even robotic arms can generate microscopic particulates. Staging bins collect dust. Every time the part hits the open air, bioburden risks multiply. This reality heavily challenges strict cleanroom standards.
In contrast, 2K molding keeps the part completely inside the sterile mold envelope. The tool remains closed until the final multi-material part finishes. This drastically reduces bioburden accumulation. When overmolding medical plastic components for critical applications, minimizing exposure is a distinct advantage.
Substrate shrinkage happens during the cooling phase of traditional overmolding. This thermal contraction can lead to micro-variations across a large batch. When you re-insert a slightly shrunken part into a rigid steel cavity, it might not fit perfectly.
The 2K method holds the primary substrate rigidly within the tool during the entire second shot. The plastic never gets the chance to warp uncontrollably. This delivers superior, repeatable tight tolerances. You absolutely need this dimensional stability for critical medical seals and complex fluid-path components.
Medical device validation requires Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ). The 2K process requires validating one highly controlled machine and tool setup. You streamline the paperwork. Traditional overmolding requires validating two separate processes, two separate machines, and the interim transfer protocol. You effectively double your compliance workload.
Engineering teams must weigh competing priorities. We use a straightforward framework to guide our clients toward the right technology.
Assess the lifecycle stage. Are you in clinical trials or full market launch?
Analyze the geometric complexity. Does the part require micro-seals or simple grips?
Determine the required cleanroom class. Does the device touch the fluid path?
Calculate the projected volume. How many units will you sell annually for the next three years?
You should opt for traditional methods under specific scenarios. We recommend it for early-stage device development. It works perfectly for clinical trial batches or low-volume niche surgical instruments. You might also choose it when utilizing existing legacy molds. If you already have a substrate tool and just want to add a new soft grip, building one secondary tool makes sense. Finally, consider it for thick-walled parts. Thick walls require very long cooling times. A single 2K cycle would tie up an expensive dual-barrel machine unprofitably.
You should transition to the single-cycle process for scale and security. It is essential for high-volume consumables. Think about dual-material syringes, wearable continuous glucose monitor housings, or mass-market IV components. You must use it for devices requiring zero-fail hermetic seals, where chemical and mechanical bonding must combine flawlessly. Finally, choose it for strict ISO Class 7 or Class 8 cleanroom manufacturing. When minimizing human handling is a non-negotiable compliance requirement, the automated process wins every time.
Overmolding provides necessary flexibility. It offers lower initial capital risk for emerging medical devices entering unpredictable markets. However, 2K injection molding serves as the definitive standard for high-yield, zero-defect scale.
We recommend engineering teams perform a deep technical review before freezing the mold design. You must carefully factor in your estimated annual volume. You must evaluate your specific cleanroom constraints. You should also account for projected scrap rates, as manual handling inherently increases material waste.
Take the next logical step in your product development journey. Submit your 3D CAD files for a comprehensive design-for-manufacturing (DFM) review. Our engineering experts will analyze your geometry and determine the exact financial break-even point for your specific medical part.
A: Yes. USP Class VI compliance depends entirely on the specific raw resins you select and the cleanroom controls in place. The molding process itself does not grant or revoke compliance. As long as you process medical-grade materials in a validated environment, both methods achieve certification.
A: Yes, these terms mean the same thing. Engineers use them interchangeably in the manufacturing industry. Both phrases describe the automated, single-machine, single-cycle 2K process where two materials inject sequentially into the same mold.

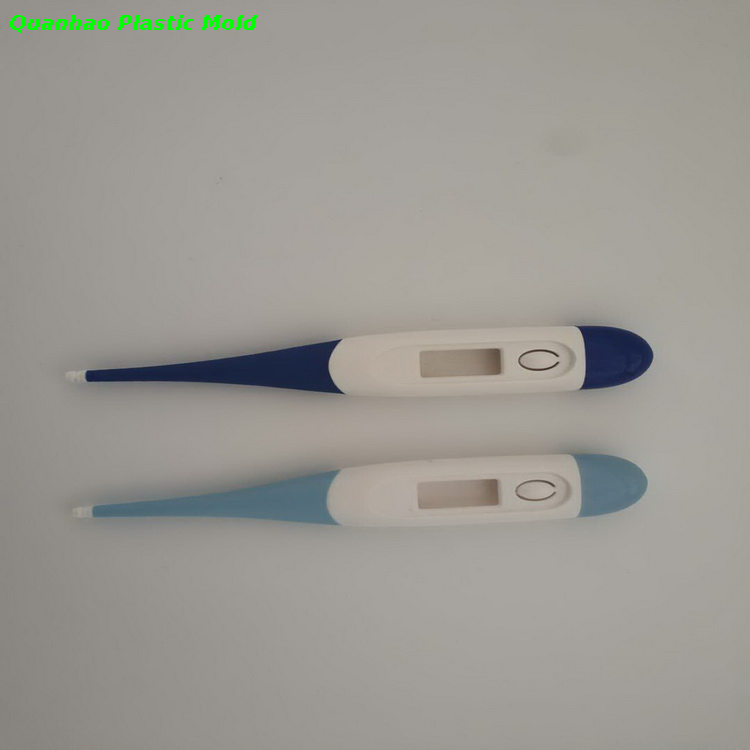

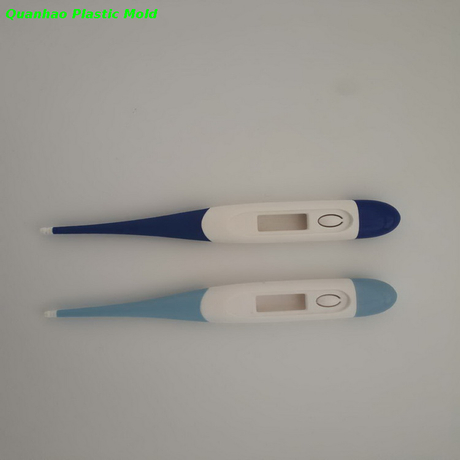

A: TPU and TPE provide excellent biocompatibility. They offer superior slip resistance for surgical instruments. They also provide soft-touch patient comfort for wearable monitors. Furthermore, these elastomers easily form strong chemical bonds to rigid, impact-resistant medical plastics like polycarbonate.
A: Generally, yes. Manual or secondary insertion in traditional overmolding introduces variables. Operators might misalign parts. Temperature drops between cycles can cause poor adhesion. These factors lead to slightly higher defect rates, such as flash or short shots, compared to the automated precision of 2K molding.
