Our custom PA66 GF30 plastic parts for electronics are formulated with 30% glass fiber-reinforced polyamide 66, offering an exceptional balance of mechanical properties including high tensile strength (91 MPa) , flexural modulus (6.2 GPa), and UL 94 V-0 flame retardancy at 1.6mm thickness. These parts are engineered for high-temperature environments (up to 255°C HDT under 1.82 MPa load) , making them ideal for critical electronic components requiring dimensional stability under thermal stress. Each production batch undergoes material certification testing to ensure consistent performance.
Reinforced Structure: The 30% glass fiber reinforcement (length-controlled at 0.2-0.4mm) enhances rigidity, reducing deflection by 40% compared to unreinforced PA66 while maintaining impact strength of 8 kJ/m². The fiber orientation is optimized during molding to maximize strength in critical load directions.
Thermal Stability: Parts maintain mechanical properties at continuous use temperatures up to 180°C, ensuring reliability in LED drivers , power supply modules , and motor controllers where heat generation is significant. Thermal cycling testing from -40°C to 125°C for 1000 cycles shows minimal dimensional change (<0.1%).

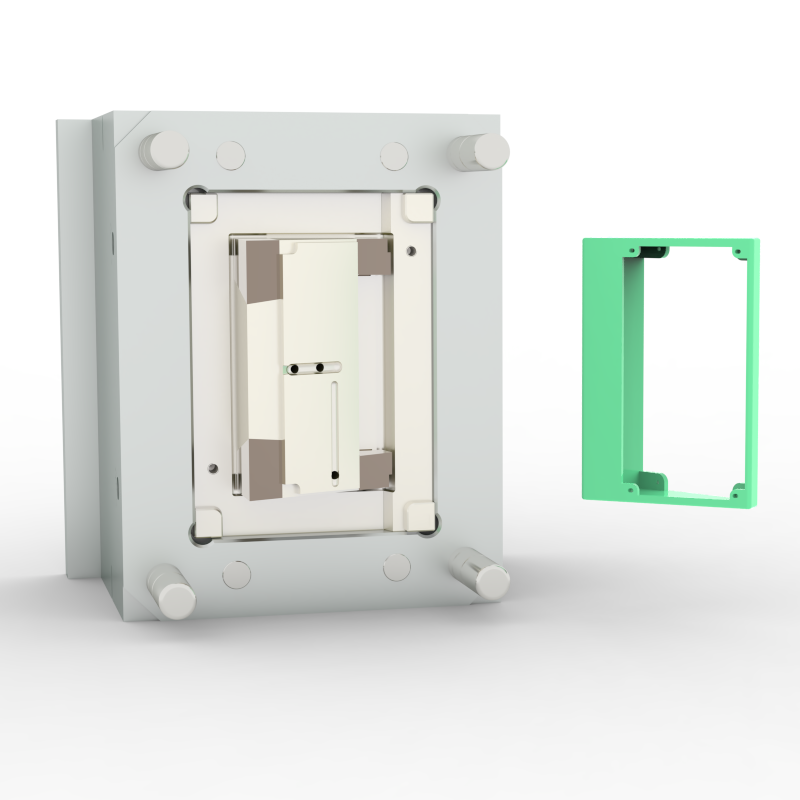

Tight Tolerances: CNC-machined molds achieve ±0.03mm accuracy across complex geometries, critical for micro-connectors and sensor housings where mating with other components is essential. In-process laser measurement systems verify dimensions at key production stages.
Surface Finish: Mirror-polished cavities produce parts with Ra ≤ 0.05μm surface roughness, eliminating secondary finishing steps and ensuring proper adhesion for subsequent coating or printing processes. Specialized release agents prevent glass fiber exposure on part surfaces.
RoHS/REACH Certified: Materials meet EU environmental standards with no restricted substances exceeding threshold limits, ensuring safe use in consumer electronics sold globally. Full material declarations are available for supply chain transparency.
Recyclable Design: Post-production waste is minimized through closed-loop recycling systems that reprocess runners and non-conforming parts into regrind material, reducing overall material consumption by 15% while maintaining mechanical properties.
PCB Components: Heat-resistant headers and terminal blocks for high-power circuits handling up to 20A current, featuring excellent electrical insulation properties (volume resistivity >10¹⁴ Ω·cm). These components resist tracking and arcing in humid environments.
Wireless Devices: Antenna brackets and RF shields with EMI/RFI suppression properties achieved through specialized material additives, ensuring signal integrity in 5G and Wi-Fi 6 devices with minimal interference.
ECU Housings: Vibration-resistant parts for engine control units, tested to 10G shock standards and 20-2000Hz vibration testing per ISO 16750. These housings provide IP6K9K protection against high-pressure water and steam cleaning.
Battery Systems: Insulated connectors and busbars with PA66 GF30’s chemical resistance to electrolytes, supporting the thermal management requirements of EV battery packs with operating temperatures up to 120°C.
Control Panels: Flame-retardant enclosures for industrial automation systems with UL 94 V-0 rating and IK08 impact resistance, protecting sensitive electronics from mechanical damage and fire hazards.
LED Lighting: Thermally conductive heat sinks with PA66 GF30’s high thermal conductivity (0.8 W/m·K) enhanced by ceramic fillers, improving heat dissipation in high-power LED fixtures by 30% compared to standard plastics.
